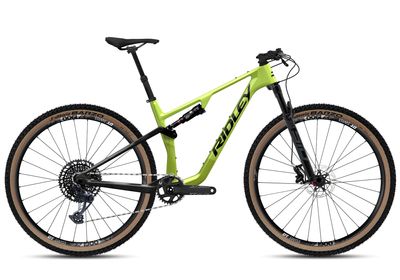

RAFT TRAIL 120mm X01 Eagle RAF01As(XL)

The assembly of the product may differ from the photo. Be sure to check out the specifications.*

About Raft Trail

TR stands for trail, but it could also mean ‘total ripper’. The Raft TR full suspension MTB is Ridleys way of doing a 120mm travel downcountry bike.

Performance tuned suspension combined with a geometry that strikes a perfect balance between agile and stable. Confidence inspiring when needed while allowing you to get loose and wild where possible. With the slack 66.6 degree head angle and long wheelbase you are always in control.

The Raft TR has a lightweight carbon fiber frame that has mounting points for 2 bottle cages inside the front triangle. Other mounting points allow you to carry tools or other accessories such as a top tube pack on the bike.

Start configuration


Advanced Position Geometry (APG)

UDH Hanger

SRAM has a universal solution for all rear-derailleurs .

Suspension Setup

Multiple Frame Mounts

Dropper Post Ready

Ridley Elite Carbon

We use a combination of the very best Torayca carbon: 60T, 50T, 30T, 24T. Toray carbon gives these Ridleys an exceptional cycling feel.


  • Frame RAFT, Elite Series, 100/120mm travel, UDH, Boost 12x148, multiple mounting points, dropper post ready
  • Fork RockShox SID Select Charger , RL 29er 120mm TA15/110
  • Rearshock: RockShox DeLuxe Select+ , 190x45 , 2 Position Manual adjustment
  • Rear brake: SRAM Level TLM DB , Flat mount
  • Groupset Trail version 120mm - Sram X01 1x12sp
  • Crankset SRAM X01 Eagle 175mm , 32T , Lunar Polar
  • Rear derrailleur SRAM X01 Eagle , 12s
  • Cassette SRAM XG-1295 Eagle , 10-52T , 12s
  • Handlebar Race Face Aeffect R , 10mm Rise , 760mm
  • Stem Race Face Aeffect R , 50 mm , 35mm clamping area
More details



What is my size?
B 420 440 480 520
C 566 597 623 643
D 95 100 115 135
E 75.3 75.1 75.1 75.1
F 66.6 66.6 66.6 66.6
G 435 435 435 435
H 40 40 40 40
I 1133 1160 1189 1212
S 596 601 608 633
R 411 436 459 474
