Noah Disc
Noah Disc 105 NHD01Bs(M)
About Noah Disc
The Noah Disc has all the same technologies and ride qualities of its big brother, the Noah Fast Disc - Champ Caleb Ewan's favorite road bike, but is more budget-friendly.
So, if you're all about speed, in search of the ultimate racing monster that doesn't break the bank, the Noah Disc road bike is the only one for you. It's built using the unique Ridley tube shape (F-Tubing), fully integrated cables as well as all other advanced F technologies such as F-Surface Plus, F-Wings and the world acclaimed Ridley aero handlebar.
Hence, the only difference between the Noah Fast Disc and Noah Disc road bike is a mere 100 grams due to its carbon lay-up of Essential Carbon. And the difference you'll feel while riding...none!
Technology

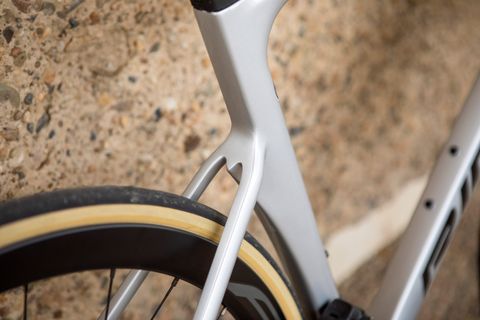

Comfort seatstays
Ridley developed seatstays using oval tubes. The result is maximized comfort and perfected power transfer!
F-Tubing & F-Surface Plus
F-Tubing & F-Surface Plus incorporate the unique, aerodynamic Ridley tube shape that lets you ride much faster, without pedaling harder.

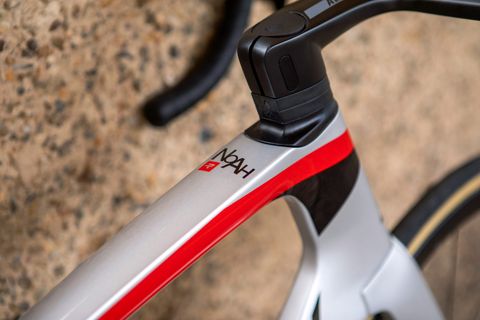

F-Steerer
Thanks to a D-shaped steerer tube, we can fully integrate all cables. A huge aerodynamic advantage that looks so sleek!
D-shaped Seatpost
By designing a seatpost as D-shaped, rather than round, you significantly increase its aerodynamics and comfort. A win-win result!
Ridley Essential Carbon
The Essential Series of Ridley bikes uses exceptional carbon by Toray, taking key features of the Elite Series to a more affordable level.
Noah Fast Tubing
The Noah Fast has one goal: riding fast with minimal effort. Hence, the shape and composition of the Noah Fast tubes are especially crucial.

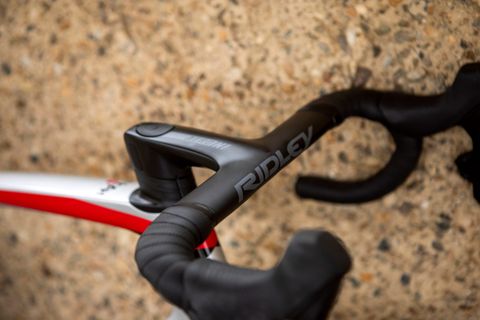

Noah Fast Aero Handlebar
A handlebar is a key component, especially on an aero bike. It strongly affects not only aerodynamics, but also bike position and comfort.
Women-specific Bikes
Geometries based on gender are outdated. Everyone is unique! Ridley recommends bike-fitting and a custom build with our Ridley Configurator.
F-Wings
A wheel hub causes turbulence. The F-Wings streamline that turbulent wind. Maybe a small detail, but it instantly makes you a faster rider!
Specifications
- Frame Noah Disc, 24-30T HM UD Carbon, F-Tubing, In-Mould F-Surface Plus, F-Steerer Head Tube, TA 12x142mm
- Fork Noah Disc, 24T-30T HM UD Carbon, In-Mould F-Surface Technology, TA 12x100mm , 45mm
- Brakes Disc
- Groupset Shimano 105 2x11sp
- Crankset Shimano 105 R7000 , 172.5 , 50-34
- Rear derrailleur Shimano 105 (R7000) , 11s
- Cassette Shimano 105 R7000 , 11s , 11-32
- Handlebar DEDA Zero2 , 420mm (cc) , Black-on-Black
- Stem Deda Super Box , 110 mm , Polish On Black
About the Noah family
The Noah is both a top aero bike as well as a continuously evolving technological masterpiece. Originally developed as the ultimate sprint bike for team Lotto, it has since incorporated all-round qualities. While it continues to win sprints, it now shines on the cobblestones around Roubaix as well.
Thanks to advanced aero-optimized tech combined with hours of wind tunnel testing, the Noah is world class in aerodynamics. All tubing, from fork to rear triangle, have an optimized NACA profile. Cables are cleverly integrated into the handlebar/stem. While the Noah may defy wind, it remains a lightweight road bike that's surprisingly comfortable. Adding to its comfort is its uniquely designed lowered seat stays which create vertical compliance.
Geometry
What is my size?
| XXS | XS | S | M | L | XL | |
|---|---|---|---|---|---|---|
| A | 720 | 750 | 775 | 800 | 825 | 850 |
| B | 430 | 455 | 480 | 505 | 530 | 555 |
| C | 512 | 526 | 545 | 565 | 587 | 603 |
| D | 95 | 117 | 140 | 164 | 194 | 218 |
| E | 74.5 | 74 | 73.5 | 73 | 72.5 | 72.5 |
| F | 71.5 | 72 | 73 | 73.5 | 73.5 | 74 |
| G | 405 | 405 | 405 | 405 | 408 | 408 |
| H | 68 | 68 | 66 | 66 | 63 | 63 |
| I | 969 | 975 | 977 | 987 | 1007 | 1017 |
| J | - | - | - | - | - | - |
| S | 493 | 516 | 541 | 565 | 591 | 616 |
| R | 375 | 378 | 385 | 393 | 401 | 409 |
Let us inspire you!
Can’t decide between a few colors or designs? Would you like to see a certain design in more detail? Then check out some of these cool designs, selected to help you choose. Let us inspire you!
